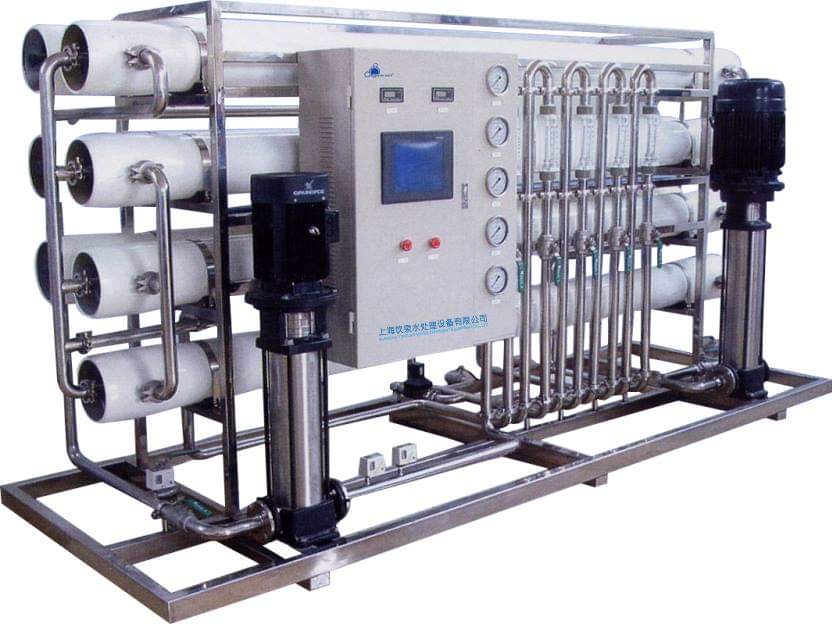

RO PLANT 10000LPH

mineral water plant manufacturer
BOTTLED WATER MANUFACTURING PLANT :Water Purification Plant is designed to produce 6000 LPH. i.e. 10M3/day offered 1 Nos. << PROCESS >> KATALOX LIGHT Media Filter: (Imported From Germany) To remove the iron. This filter media is imported from Germany. It can remove iron up to 15ppm ZEOSORB  Filter MEDIA : To remove suspended matter from the water SILVER IMPREGNATED Activated Carbon Filter (1200IV )  To remove color, odor & smell from the water. To remove oil & grease from the raw water. To control BOD & COD in the raw water
Compare

Description

BOTTLED WATER MANUFACTURING PLANT :Water Purification Plant is designed to produce 6000 LPH. i.e. 10M3/day offered 1 Nos. << PROCESS >> KATALOX LIGHT Media Filter: (Imported From Germany) To remove the iron. This filter media is imported from Germany. It can remove iron up to 15ppm ZEOSORB  Filter MEDIA : To remove suspended matter from the water SILVER IMPREGNATED Activated Carbon Filter (1200IV )  To remove color, odor & smell from the water. To remove oil & grease from the raw water. To control BOD & COD in the raw water

Micron Filtration: To remove micron particles from the raw water

Osmotic pressure system (High Pressure Pump)

To create osmotic pressure in the raw water.

Desalination System by Reverse Osmosis Membrane Element.

To desalt the raw water i.e. to reduce total dissolve solids.

Ion Controlling System. To adjust the minerals contains in process water by means of mixing of raw water in

the desalted treated water. Due to propionate mixing required quantity of raw water, we can mix to get required quantity of ions from raw water to desalted water.

Storage of Package Drinking Water.

To remove back pressure in R.O. Membrane elements.

Fine polishing filtration.

To filter water from 1 to 0.5 micron and achieve crystal clear filtered treated water.

U.V. System.

To kill the bacteria from the fine water. elements.

Ozonization.

To prevent biological and micro organism growth in the stagnant water.

Final treated water transfer pump.

To transfer crystal clear & bacteria free mineral water for Packing / Bottling.

Re-Circulation of Package Drinking water for Ozonization.

To re-circulate and add ozone in mineral water.

FLOW CHART OF PACKAGE DRINKING WATER PLANT SCOPE OF SUPPLY

THE SCOPE OF SUPPLY FOR PRE-TREATMENT OF PURE DRINKING WATER / MINERAL WATER PROJECT CONTAINS FOLLOWING AS UNDER:

Sr.



1

Description



Raw Water Feeding Pump

Qty.



1 No.

2 Katalox Light Filter 1 No.
3  Zeosorb Filter Media 1 No.
4    Activated Carbon Filter 1 No.
5 Micron Filtration System 1 No.
6 High Pressure Pump 1 No.
7 Reverse Osmosis Element 1 Set
8 Pressure Vessel for Element 1 Set
9 Electronic Control Panel 1 No.
10 Instruments & Instrument Panel 1 Set
11 Micron Filtration for Minerals Controlling System 1 No.
12 Ultra Violet Disaffection System for Mineral Controlling 1 No.
13 Package Drinking Water Storage Tank 1 No.
14 Package Drinking Water Transfer Pump 1 No.
15 Fine Polishing Micron Filtration System 1 No.
16 Ozone Generating Set 1 No.
17 Ozone Reacting Tank 1 No.
18 Ozone Circulating Pump 1 No.
19 Crystal Clear Bacteria Free  Transferring Pump 1 No.
